Automatic charger for forklift battery/traction battery, SCR 48V 65A 3-phase, Input-380V

Name: Automatic charger for forklift batterytraction battery SCR 48V 65A 3phase Input380V
Brand: LAKER
Price: 1 USD

China Automatic charger for forklift battery/traction battery, SCR 48V 65A 3-phase, Input-380V wholesale

Brand Name : LAKER

Model Number : SCR 48V-3P-65A

Certification : CE，ISO

Place of Origin : CHINA

MOQ : 1PCS

Price : please send email

Payment Terms : T/T,L/C at sight

Supply Ability : 1000pcs per month

Delivery Time : 7days for sample order, 15days for bulk order

Packaging Details : Standard Carton and Wooden Pallet

Color : Yellow, Grey

Application : traction/forklift batteries charging

Input : 380V

output current : 65A

Contact Now

LAKER MACHINERY BATTERY CHARGER

1. Features

SCR Series Intelligent Charger is the organic combination of leakage transformer, technology of Silicon-controlled rectifier and Microcomputer Control. This device could optimize Wsa+Pulse charging characteristic curve. As charge voltage of battery increases, charge current decreases automatically.
Pulse charge would be performed before gas emissions or in late stage of recharge. On the premise of guarantee adequate battery power, this device would lower greatly internal temperature
and reduce gas emissions of battery, prolong the life of battery effectively and raise the charging efficiency eventually.
The whole product has simple structure, convenient operation, complete functions and high efficiency.

2. Applications
This device would be applicable to recharge of lead-acid batteries which could be used in
various electric vehicle such as power pallet trucks, fork-lift truck, lift truck, electronic tour bus.

3. Specifications for charger used for traction battery
table 1

Rated voltage	Charge type	(Ah)Charge time per battery capacity11h	Housing type	Power rating KVA	Characteristic
24V	SCR-24/20	140-210	ST-1	0.86	Auto
	SCR-24/30	220-300	ST-1	1.30	Auto
	SCR-24/40	320-385	ST-1	1.73	Auto
	SCR-24/50	390-440	ST-1	2.20	Auto
	SCR-24/60	450-580	ST-2	2.60	Auto
	SCR-24/80	585-720	ST-2	3.50	Auto
	SCR-24/100	760-960	HT-1	4.30	Auto
36V	SCR-36/20	140-210	ST-1	1.30	Auto
	SCR-36/30	220-300	ST-1	2.00	Auto
	SCR-36/40	320-385	ST-1	2.60	Auto
	SCR-36/50	390-440	ST-2	3.24	Auto
	SCR-36/60	450-580	ST-2	3.89	Auto
	SCR-36/80	585-720	HT-1	5.18	Auto
	SCR-36/100	760-960	HT-1	6.00	Auto
48V	SCR-48/20	140-210	ST-1	1.73	Auto
	SCR-48/30	220-300	ST-1	2.60	Auto
	SCR-48/40	320-385	ST-2	3.50	Auto
	SCR-48/50	390-440	ST-2	4.30	Auto
	SCR-48/60	450-580	ST-2	5.00	Auto
	SCR-48/80	585-720	HT-1	6.50	Auto
	SCR-48/100	760-960	HT-2	7.60	Auto
72V	SCR-72/20	140-210	ST-2	2.20	Auto
	SCR-72/30	220-300	ST-2	3.24	Auto
	SCR-72/40	320-385	HT-1	4.30	Auto
	SCR-72/50	390-440	HT-1	5.40	Auto
	SCR-72/60	450-580	HT-2	6.50	Auto
	SCR-72/80	585-720	HT-2	8.60	Auto
	SCR-72/100	760-960	HT-2	11.00	Auto
80V	SCR-80/50	390-440	HT-2	6.50	Auto
	SCR-80/60	450-580	HT-2	7.60	Auto
	SCR-80/80	585-720	HT-2	11.00	Auto

Automatic charger for forklift battery/traction battery, SCR 48V 65A 3-phase, Input-380V

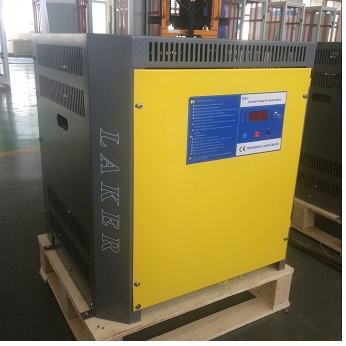

Automatic charger for forklift battery/traction battery, SCR 48V 65A 3-phase, Input-380V Images
